Specifications



StyleShoots Horizontal

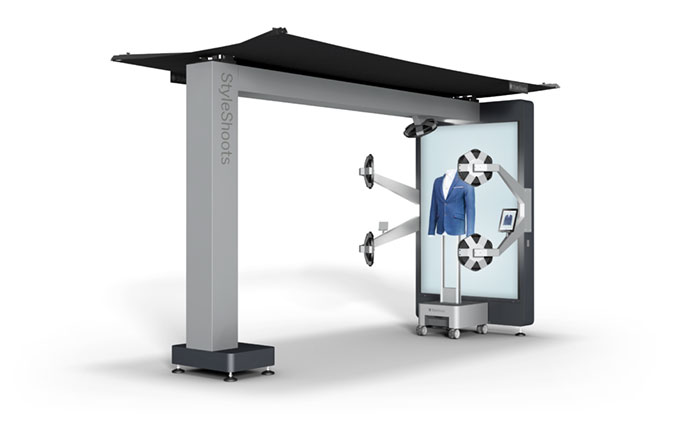

StyleShoots Vertical


Main Structure

Custom designed and precision manufactured industrial enclosure in powder coated sheet steel and aluminum, hiding all cables and designed for a busy studio environment.

Integrated overhanging Canopy shielding the system from overhead lights.


Backlight

Dimmable LED backlight panel covered by a scratch resistant acid-etched tinted glass with custom glass black/white diffusion capabilities. The backlight enables the multi-shot Auto Alpha™ background removal algorithm. The backlight does not illuminate the product in the final image.


Caddy and Dock

Vertical only

Caddy is a clever wheel base for your mannequins with electric contact points, manually operated 0˚-180˚ rotation mechanism and actively illuminating fixture poles.

The backwall's Dock magnetically holds the Caddy in position until released, ensuring perfect alignment and consistency in every photo, and transfers power to the Caddy's fixtures.

The system comes with 2 Caddies as default. Extra Caddies can be purchased.


Electronics

Embedded electronics controlling LED panel and camera system.

Embedded Mac mini running the Auto Alpha image processing algorithm.

Apple iPad™ and charging cable.


Ports

USB A for external storage.

Ethernet for Remote Support and Software Updates.

C14 mains inlet and switch. Euro, UK and US power cables available.


Camera and Imaging System

Horizontal

Canon 5D Mark IV DSLR camera.

Canon 24-105mm STM lens.

24-105mm motorized Zoom.



Vertical

Canon 5D Mark IV DSLR camera.

Canon 70-200mm L lens.

700-200mm motorized Zoom.


Lighting System

Horizontal

4 high-CRI LED panels custom developed by Rotolight™ for StyleShoots, illuminating the product.



Vertical

5 high-CRI LED panels custom developed by Rotolight™ for StyleShoots, illuminating the product.


Export File Formats

JPG supporting color or image background, drop shadow, adjustable compression rate and custom dimensions.

PNG supporting transparent background, color or image background, drop shadow and custom dimensions.

TIFF supporting transparent background and full resolution.

CR2 (Canon Raw file saved directly from camera).


Software

StyleShoots Core

State of the art embedded software controlling all hardware, image processing and file exporting. Includes hallmark features like Auto Alpha™ and Light Controller™.

StyleShoots iPad app

Native iOS app ensuring fluid control of all StyleShoots features. Running on an iPad in portrait format with a user interface providing full control and true color review of your photos.

StyleShoots Drive

Share files on your company network with StyleShoots Drive or save them to USB. Mount the shared drive on your company network, providing instant file access.


Options

Round Diffuser

The Round Diffuser is designed to soften and shape the light on StyleShoots Horizontal and Vertical. The diffusers consist or a reflector and a front diffuser. The reflector is permanently fastened to the LED lights on your StyleShoots machine with screws. If you wish to change between diffused and directional light, you can easily mount and unmount the front diffuser from the reflector part.


Network Access and Security

StyleShoots gets the latest software updates automatically from our cloud server. Our support team may access your system remotely to diagnose any problems. To deliver these services, StyleShoots requires an internet connection via Ethernet.

StyleShoots creates its own closed 5GHz WPA2 protected Wi-Fi network to maintain stable communication with the custom iOS app on the iPad.

StyleShoots can be configured by us to be in USB Only or Network Mode. USB Only means the system needs an external USB storage device to operate. Network Mode means the system stores files on the internal drive which can be accessed via your company network. When a USB device is inserted, the system will switch to store files on the USB instead.

Your photos are safe. Our development team may remotely inspect specific shots and collect general usage data to continuously improve the software and algorithms of the system. Your photos will never be shared with third parties without your knowledge.


Size

Height: 260 cm / 102 inches

Width: 216 cm / 85 inches

Length: 282 cm / 111 inches

Height: 260 cm / 102.4 inches

Width: 205 cm / 80.7 inches

Length: 410 cm /  161.4 inches


Operating Conditions

Room size (HxWxL): 260cm x 300cm x 400cm (102inch x 118inch x 157inch)

Floor: Plain and leveled, ideally concrete or similar.

Ambient Lighting: Continuous throughout the day. No direct light entering machine area.

Environment: System should not be installed in a sprinkler controlled environment.

Room temperature: 10°C - 30°C.

Max power consumption: 1000 W at 230V AC

Line voltage: 110V to 230V AC

Frequency: 50Hz to 60Hz



Room size (HxWxL): 265cm x 400cm x 420cm (104inch x 157inch x 165inch)

Floor: Plain and leveled, ideally concrete or similar.

Ambient Lighting: Continuous throughout the day. No direct light entering machine area.

Environment: System should not be installed in a sprinkler controlled environment.

Room temperature: 10°C - 30°C.

Max power consumption: 1000 W at 230V AC

Line voltage: 110V to 230V AC

Frequency: 50Hz to 60Hz
